寸法
mm |
断面積
cm2 |
単位質量
kg/m |
重心の位置
cm |
断面二次モーメント
cm4 |
断面二次半径
cm |
断面係数
cm3 |

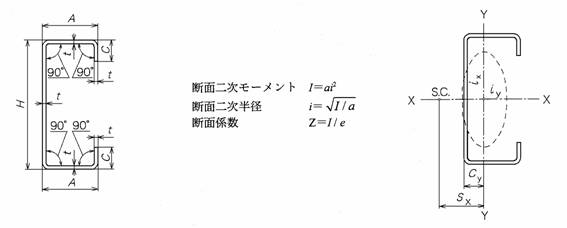

| Ｈ×Ａ×Ｃ |
ｔ |
ａ |
301L
304 |
316 |
410L
410S |
436L |
Ｃｘ |
Ｃｙ |
Ｉｘ |
Ｉｙ |
ｉｘ |
ｉｙ |
Ｚｘ |
Ｚｙ |
| 40×20×8 |
2 |
1.657 |
1.31 |
1.32 |
1.28 |
1.28 |
0 |
0.74 |
3.80 |
0.84 |
1.52 |
0.71 |
1.91 |
0.67 |
| 52×20×8 |
2 |
1.897 |
1.50 |
1.51 |
1.47 |
1.46 |
0 |
0.66 |
7.24 |
0.93 |
1.95 |
0.70 |
2.78 |
0.69 |
| 60×20×8 |
2 |
2.057 |
1.63 |
1.64 |
1.59 |
1.58 |
0 |
0.62 |
10.3 |
0.97 |
2.23 |
0.69 |
3.42 |
0.70 |
| 60×30×10 |
2 |
2.537 |
2.01 |
2.02 |
1.97 |
1.95 |
0 |
1.06 |
14.0 |
3.01 |
2.35 |
1.09 |
4.66 |
1.55 |
| 60×30×15 |
2 |
2.737 |
2.17 |
2.18 |
2.12 |
2.11 |
0 |
1.19 |
14.6 |
3.64 |
2.31 |
1.15 |
4.87 |
2.02 |
| 70×20×8 |
2 |
2.257 |
1.79 |
1.80 |
1.75 |
1.74 |
0 |
0.57 |
15.0 |
1.02 |
2.58 |
0.67 |
4.28 |
0.71 |
| 75×40×15 |
2 |
3.437 |
2.73 |
2.74 |
2.66 |
2.65 |
0 |
1.50 |
30.3 |
7.90 |
2.97 |
1.52 |
8.08 |
3.16 |
| 75×45×15 |
2 |
3.637 |
2.88 |
2.90 |
2.82 |
2.80 |
0 |
1.72 |
33.0 |
10.5 |
3.01 |
1.70 |
8.79 |
3.77 |
| 80×40×15 |
2 |
3.537 |
2.80 |
2.82 |
2.74 |
2.72 |
0 |
1.46 |
35.3 |
8.09 |
3.16 |
1.51 |
8.82 |
3.19 |
| 100×50×20 |
2 |
4.537 |
3.60 |
3.62 |
3.52 |
3.49 |
0 |
1.87 |
71.4 |
16.9 |
3.97 |
1.93 |
14.3 |
5.40 |
| 120×60×20 |
2 |
5.337 |
4.23 |
4.26 |
4.14 |
4.11 |
0 |
2.13 |
123 |
27.8 |
4.81 |
2.28 |
20.6 |
7.19 |
| 125×50×20 |
2 |
5.037 |
3.99 |
4.02 |
3.90 |
3.88 |
0 |
1.69 |
120 |
18.3 |
4.89 |
1.91 |
19.3 |
5.54 |
| 150×50×20 |
2 |
5.537 |
4.39 |
4.42 |
4.29 |
4.26 |
0 |
1.55 |
185 |
19.5 |
5.79 |
1188 |
24.7 |
5.64 |
|
