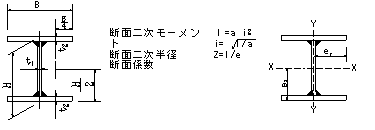

標準断面寸法
mm |
断面積
cm2 |
単位質量
kg/m |
参考 |
断面2次ﾓｰﾒﾝﾄ
cm4 |
断面2次半径
cm |
断面係数
cm3 |
塑性断面係数
cm3 |
| Ｈ×Ｂ |
ｔ1 |
ｔ2 |
a |
304A
304N2A |
316A |
| Ix |
Iy |
ix |
iy |
Zx |
Zy |
Zpx |
Zpy |
| 75×75 |
5 |
8 |
14.95 |
11.9 |
11.9 |
144 |
56.3 |
3.10 |
1.94 |
38.4 |
15.0 |
44.6 |
22.9 |
| 100×100 |
6 |
8 |
21.04 |
16.7 |
16.8 |
369 |
133 |
4.19 |
2.52 |
73.8 |
26.7 |
84.2 |
40.8 |
| 125×125 |
7 |
9 |
29.99 |
23.8 |
23.9 |
830 |
293 |
5.26 |
3.13 |
133 |
46.9 |
151 |
71.6 |
| 150×150 |
8 |
10 |
40.40 |
32.0 |
32.2 |
1620 |
563 |
6.33 |
3.73 |
216 |
75.1 |
244 |
115 |
| 175×175 |
8 |
12 |
54.08 |
42.9 |
43.2 |
3020 |
1070 |
7.48 |
4.45 |
346 |
123 |
388 |
186 |
| 200×200 |
8 |
12 |
62.08 |
49.2 |
49.5 |
4610 |
1600 |
8.62 |
5.08 |
461 |
160 |
513 |
243 |
| 250×250 |
9 |
14 |
89.98 |
71.4 |
71.8 |
10600 |
3650 |
10.8 |
6.37 |
846 |
292 |
937 |
442 |
| 300×300 |
10 |
16 |
122.8 |
97.4 |
98.0 |
21000 |
7200 |
13.1 |
7.66 |
1400 |
480 |
1540 |
727 |
| 350×350 |
12 |
19 |
170.4 |
135 |
136 |
39500 |
13600 |
15.2 |
8.93 |
2260 |
776 |
2490 |
1170 |
| 400×400 |
14 |
22 |
225.8 |
179 |
180 |
68200 |
23500 |
17.4 |
10.2 |
3410 |
1170 |
3770 |
1780 |
標準断面寸法
mm |
断面積
cm2 |
単位質量
kg/m |
参考 |
断面2次ﾓｰﾒﾝﾄ
cm4 |
断面2次半径
cm |
断面係数
cm3 |
塑性断面係数
cm3 |
| Ｈ×Ｂ |
ｔ1 |
ｔ2 |
a |
304A
304N2A |
316A |
| Ix |
Iy |
ix |
iy |
Zx |
Zy |
Zpx |
Zpy |
| 148×100 |
6 |
9 |
25.80 |
20.5 |
20.6 |
981 |
150 |
6.16 |
2.41 |
133 |
30.0 |
150 |
46.2 |
| 200×150 |
6 |
9 |
37.92 |
30.1 |
30.3 |
2770 |
507 |
8.54 |
3.66 |
277 |
67.5 |
308 |
103 |
| 250×175 |
7 |
12 |
57.82 |
45.9 |
46.1 |
6630 |
1070 |
10.7 |
4.31 |
530 |
123 |
589 |
187 |
| 300×200 |
8 |
12 |
70.08 |
55.6 |
55.9 |
11400 |
1600 |
12.7 |
4.78 |
757 |
160 |
844 |
244 |
| 350×250 |
9 |
14 |
98.98 |
78.5 |
79.0 |
22300 |
3650 |
15.0 |
6.07 |
1270 |
292 |
1410 |
444 |
| 400×300 |
10 |
16 |
132.8 |
105 |
106 |
39600 |
7200 |
17.3 |
7.36 |
1980 |
480 |
2180 |
729 |
| 450×300 |
12 |
18 |
157.7 |
125 |
126 |
57500 |
8110 |
19.1 |
7.17 |
2560 |
540 |
2850 |
825 |
| 500×300 |
12 |
18 |
163.7 |
130 |
131 |
72700 |
8110 |
21.1 |
7.04 |
2910 |
540 |
3250 |
827 |
| 600×300 |
12 |
20 |
187.2 |
148 |
149 |
119000 |
9010 |
25.2 |
6.94 |
3950 |
601 |
4420 |
920 |
標準断面寸法
mm |
断面積
cm2 |
単位質量
kg/m |
参考 |
断面2次ﾓｰﾒﾝﾄ
cm4 |
断面2次半径
cm |
断面係数
cm3 |
塑性断面係数
cm3 |
| Ｈ×Ｂ |
ｔ1 |
ｔ2 |
a |
304A
304N2A |
316A |
| Ix |
Iy |
ix |
iy |
Zx |
Zy |
Zpx |
Zpy |
| 100×50 |
5 |
8 |
12.20 |
9.67 |
9.74 |
194 |
16.8 |
3.99 |
1.17 |
38.9 |
6.70 |
45.6 |
10.5 |
| 125×60 |
6 |
8 |
16.14 |
12.8 |
12.9 |
394 |
29.0 |
4.94 |
1.34 |
63.0 |
9.67 |
74.0 |
15.4 |
| 150×75 |
5 |
8 |
18.70 |
14.8 |
14.9 |
706 |
56.4 |
6.14 |
1.74 |
94.1 |
15.0 |
108 |
23.3 |
| 175×90 |
5 |
8 |
22.35 |
17.7 |
17.8 |
1170 |
97.4 |
7.24 |
2.09 |
134 |
21.6 |
152 |
33.4 |
| 200×100 |
6 |
8 |
27.04 |
21.4 |
21.6 |
1790 |
134 |
8.13 |
2.22 |
179 |
26.7 |
204 |
41.7 |
| 250×125 |
6 |
9 |
36.42 |
28.9 |
29.1 |
3890 |
293 |
10.3 |
2.84 |
311 |
46.9 |
352 |
72.4 |
| 300×150 |
7 |
9 |
46.74 |
37.1 |
37.3 |
7030 |
507 |
12.3 |
3.29 |
468 |
67.6 |
532 |
105 |
| 350×175 |
7 |
12 |
64.82 |
51.4 |
51.7 |
14000 |
1070 |
14.7 |
4.07 |
801 |
123 |
896 |
188 |
| 400×200 |
8 |
14 |
85.76 |
68.0 |
68.4 |
24300 |
1870 |
16.8 |
4.67 |
1220 |
187 |
1360 |
286 |
| 450×200 |
9 |
14 |
93.98 |
74.5 |
75.0 |
32300 |
1870 |
18.5 |
4.46 |
1430 |
187 |
1620 |
289 |
| 500×200 |
10 |
16 |
110.8 |
87.9 |
88.4 |
46000 |
2140 |
20.4 |
4.39 |
1840 |
214 |
2100 |
332 |
| 600×200 |
12 |
18 |
139.7 |
111 |
111 |
78900 |
2410 |
23.8 |
4.15 |
2630 |
241 |
3050 |
380 |
|
