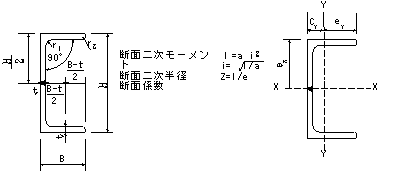

標準断面寸法
mm |
断面積
cm2 |
単位質量
kg/m |
参 考 |
重心の位置
cm |
断面二次ﾓｰﾒﾝﾄ
cm4 |
断面二次半径
cm |
断面係数
cm3 |
| H×Ｂ |
t |
r1 |
r2 |
a |
304A
304N2A |
316A |
| Cx |
Cy |
Ix |
Iy |
ix |
iy |
Zx |
Zy |
| 40×20 |
3 |
4 |
2 |
2.271 |
1.80 |
1.81 |
0 |
0.59 |
5.22 |
0.778 |
1.52 |
0.585 |
2.61 |
0.553 |
| 50×25 |
3 |
4 |
2 |
2.871 |
2.28 |
2.29 |
0 |
0.72 |
10.6 |
1.60 |
1.93 |
0.746 |
4.26 |
0.896 |
| 80×40 |
5 |
4.5 |
3 |
7.548 |
5.99 |
6.02 |
0 |
1.16 |
71.1 |
10.9 |
3.07 |
1.20 |
17.8 |
3.83 |
| 100×50 |
4 |
6.5 |
3 |
7.823 |
6.20 |
6.24 |
0 |
1.36 |
121 |
18.2 |
3.93 |
1.52 |
24.2 |
4.99 |
| 5 |
6.5 |
3 |
9.643 |
7.65 |
7.70 |
0 |
1.41 |
146 |
22.1 |
3.89 |
1.52 |
29.2 |
6.16 |
| 6 |
6.5 |
4.5 |
11.37 |
9.02 |
9.07 |
0 |
1.43 |
168 |
25.3 |
3.85 |
1.49 |
33.7 |
7.09 |
| 130×65 |
6 |
8.5 |
4 |
15.12 |
12.0 |
12.1 |
0 |
1.80 |
390 |
58.9 |
5.08 |
1.97 |
60.0 |
12.5 |
| 150×75 |
6 |
8.5 |
4 |
17.52 |
13.9 |
14.0 |
0 |
2.05 |
609 |
92.3 |
5.90 |
2.30 |
81.2 |
17.0 |
| 9 |
8.5 |
6 |
25.54 |
20.3 |
20.4 |
0 |
2.16 |
850 |
129 |
5.77 |
2.25 |
113 |
24.2 |
| 200×100 |
10 |
10 |
7 |
38.22 |
30.3 |
30.5 |
0 |
2.81 |
2308 |
351 |
7.71 |
3.03 |
231 |
48.8 |
|
